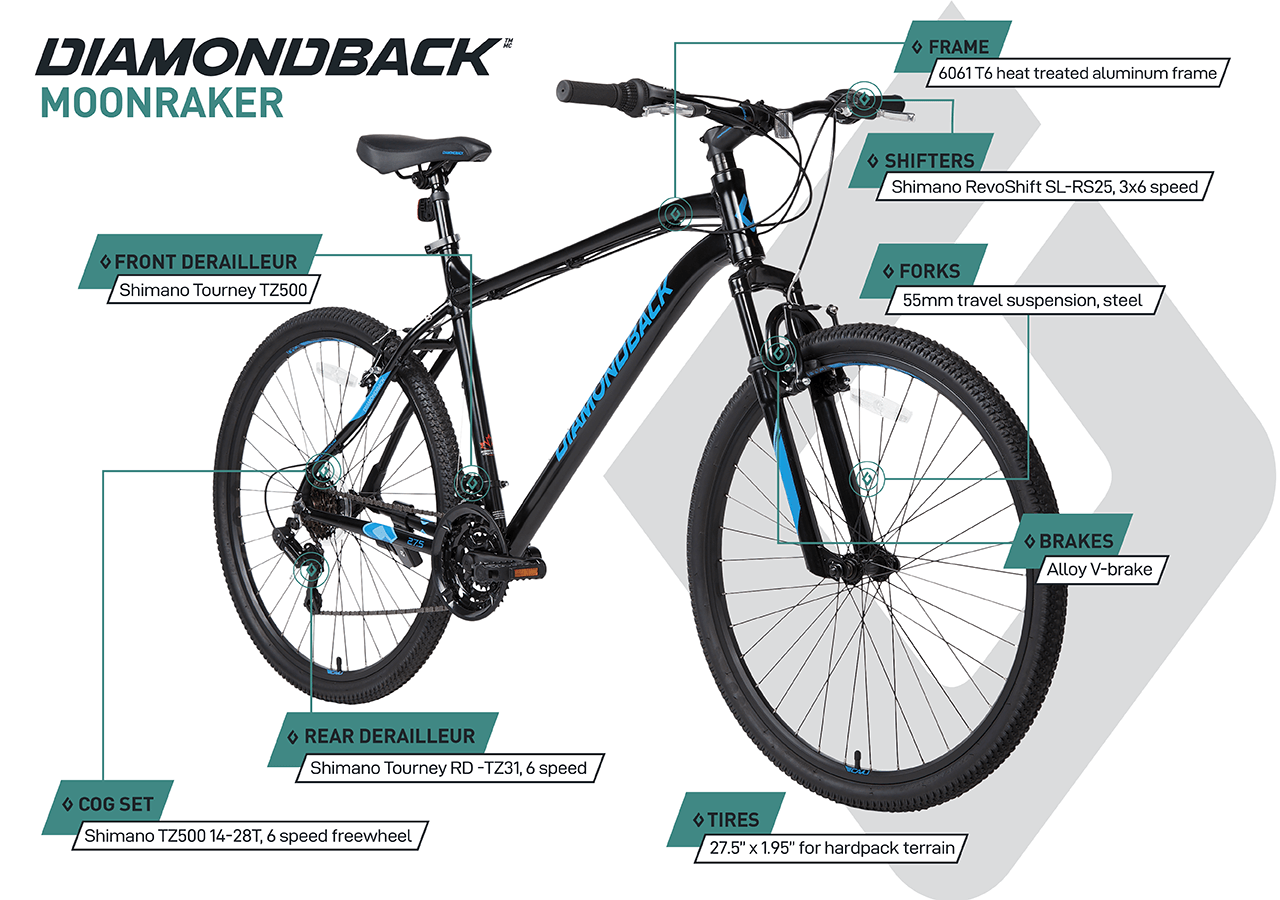

Specifications
- Frame Specs: 6061 T6 heat treated aluminum frame
- Rear Shock: N/A
- Fork: 55mm travel suspension, steel
- Cable Routing: External guided w/ full length housing
- Rear Derailleur: Shimano Tourney RD -TZ31, 6 speed
- Front Derailleur: Shimano Tourney TZ500
- Shifters: Shimano RevoShift SL-RS25, 3x6 speed
- Cog Set: Shimano TZ500 14-28T, 6 speed freewheel
- Chain: KMC Z7
- Crankset: ProWheel Alloy, 9/16*170MM
- Bottom Bracket: Gineyea BB73-68, square taper, sealed cartridge
- Front Brake: Alloy V-brake
- Rear Brake: Alloy V-brake
- Brake Levers: Resin clamp with alloy lever
- Headset: Neco H-148, 1-1/8" threadless, Semi-integrated
- Seat post: Steel 27.2mm x 300mm
- Handlebar: Diamondback, 31.8mm*680mm
- Stem: Diamondback Alloy, 80mm, 7 degree rise
- Saddle: Diamondback padded
- Pedals: 9/16" Resin body, flats
- Grips: Kraton 92mm
- Rims: CAVU Aluminum double wall, 36 hole, 27.5"
- Front Tire: 27.5" x 1.95" for hardpack terrain
- Rear Tire: 27.5" x 1.95" for hardpack terrain
- Tubeless Ready: No
- Front Hub: Steel 3/8" nutted
- Rear Hub: Steel 3/8" nutted
Features
- Lightweight 6061 T6 aluminum frame with Diamondback's formed tubing features optimised wall thickness for a balance of strength, weight, and stiffness that translates to a responsive, and reliable ride
- 55mm travel front suspension fork offers a smooth, comfortable ride
- 27.5" x 1.95" low rolling resistance MTB tires offer great traction on hardback, gravel, and pavement.
- Reliable V-brakes for confident stopping and simple maintenance
- Shimano's RevoShift and Tourney 18 speed drivetrain make for easy, reliable shifting with no fuss
- Easy and dependable resin flat pedals so you can get on your bike and ride without worry of any need for specialty bike footwear
- Padded saddle is equipped with a quick release seat post clamp so it's always easy to find the perfect saddle height.
