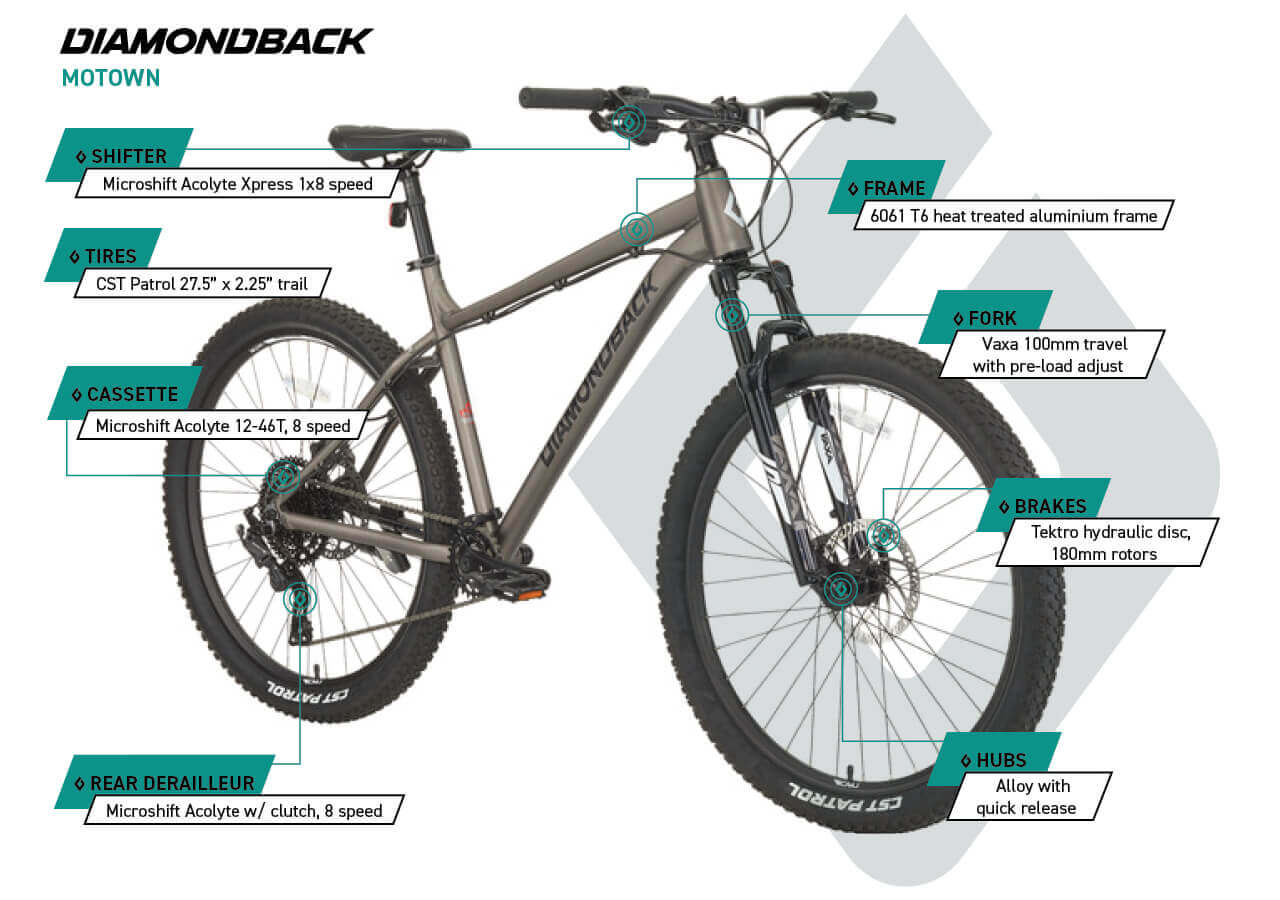

Specifications
- Frame Specs: 6061 T6 heat treated aluminum frame
- Rear Shock: N/A
- Fork: Vaxa 100mm travel, with pre-load adjust
- Cable Routing: External guided w/ full length housing
- Rear Derailleur: Shimano Tourney TX800, 8 speed
- Front Derailleur: Shimano TY700
- Shifters: Shimano SL-M315 Rapid Fire 3x8 speed
- Cog Set: Shimano Hyperglide HG318, 8 speed cassette
- Chain: KMC Z8.3
- Crankset: ProWheel Alloy, 9/16*170MM
- Bottom Bracket: Gineyea BB73-68, square taper, sealed cartridge
- Front Brake: Tektro HD-M275 Hydraulic, 160mm rotor
- Rear Brake: Tektro HD-M275 Hydraulic, 160mm rotor
- Brake Levers: Tektro HD-M275 Hydraulic, w/ reach adjust
- Headset: Neco H-148, 1-1/8" threadless, Semi-integrated
- Seat post: CAVU 27.2mm x 300mm Alloy
- Handlebar: CAVU, 31.8mm*760mm
- Stem: CAVU Alloy, 80mm, 7 degree rise
- Saddle: CAVU MTB
- Pedals: 9/16" Resin body, flats
- Grips: CAVU Lock-on w/ closed end
- Rims: CAVU Aluminum double wall, 36 hole, 27.5"
- Front Tire: 27.5" x 2.25" for all-terrain
- Rear Tire: 27.5" x 2.25" for all-terrain
- Tubeless Ready: No
- Front Hub: Steel with Quick Release
- Rear Hub: Alloy w/ quick release
Features
- Lightweight 6061 T6 aluminum frame with Diamondback's formed tubing features optimised wall thickness for a balance of strength, weight, and stiffness that translates to a responsive, and reliable ride
- Vaxa 100mm travel front suspension fork with adjustable preload soaks up the bumps and offers smooth and confident control over various terrain
- 27.5" x 2.3" aggressive MTB tires for traction that will bite into any trail conditions
- Tektro hydraulic disc brakes provide immediate stopping power and easy modulation to control your speed in any conditions
- Shimano Rapid Fire and Tourney 24 speed drivetrain offers precise and deliberate shifting so you can tackle new terrain with confidence
- Easy and dependable resin flat pedals so you can get on your bike and ride without worry of any need for specialty bike footwear
- CAVU Comfort-Mountain saddle is equipped with a quick release seat post clamp so it's always easy to find the perfect saddle height.
- CAVU Lock on grips for a confident and reliable connection point in wet or dry conditions
